【Accessories series】
DZS12-APN01
>> Overview

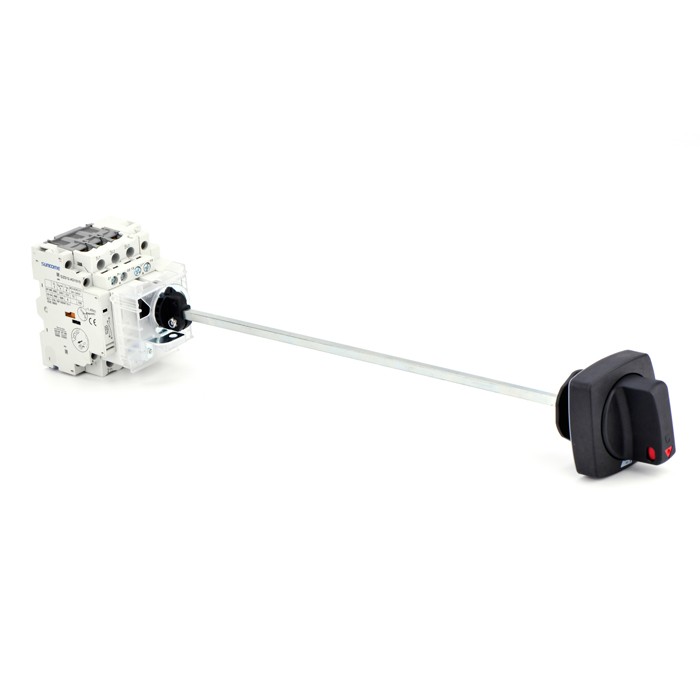

The circuit breaker installed on the inside of the cabinet can be operated from the front of the cabinet. The circuit breaker can be locked in the off or on position through a padlock with a key handle with a diameter of 4 to 5 mm; the extension shaft must be adjusted to fit in cabinets of different sizes In use, the rotating handle is fixed with (Φ22mm) nuts, making it easier to assemble.

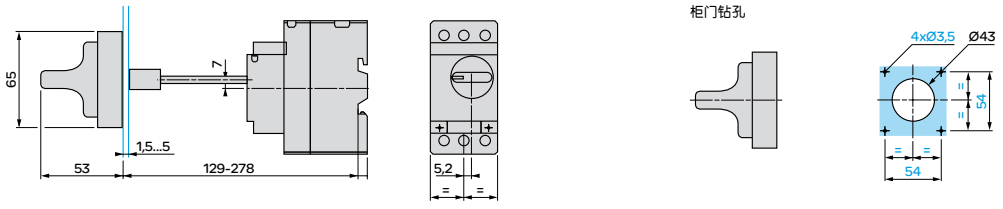

>> Mounting dimensions
Install extended operating handle DSZ12-APN01 for DSZ12-PM
