【CJX2 series】
CJX2-6.3 N
>>Use
CJX2-6.3 AC contactor is suitable for AC 50Hz/60Hz, rated insulation voltage AC690V, rated working voltage up to AC660V, in the AC-3 use category, rated working current up to 6.3A, for remote connection and breaking The circuit is suitable for starting and breaking of cage induction motors. It can be directly plugged into the thermal relay to form an electromagnetic starter to protect circuits that may be overloaded. The contactor can also be easily installed with auxiliary contacts, and at the same time, two contactors can be combined into a mechanical interlocking AC contactor.

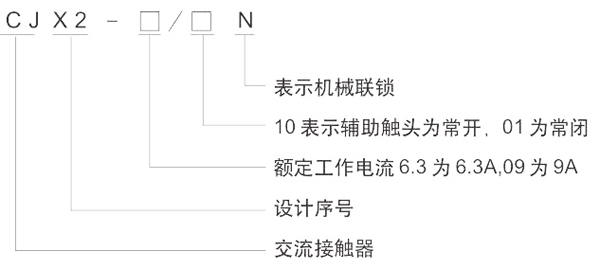

>>Model meaning
>> The auxiliary contact group that can be installed on the contactor, see its model
model | Number of contacts | Wiring form |
F4-20E | 2NO | Screw link |
F4-11E | NO+NC | Screw link |
F4-02E | 2NC | Screw link |
> >Technical Parameters
Parameters/Model | CJX2-6.3 | CJX2-09 | |||
AC-3 rated working current under the use category (le)A | 380V | 6 | 9 | ||
660V | 5 | 7.5 | |||
Conventional heating current (lth) A | 16 | 16 | |||
Rated working voltage (Ue) V | 380.660 | ||||
Rated insulation voltage (Ui) V | 660 | ||||
AC-3 (6le le) | Electric life (times) | 0.3*10 6 | 0.3*10 6 | ||
Operating frequency h -1 | 1200 | 1200 | |||
AC-4 (6le 6le) | Electric life (times) | 10*10 4 | 10*10 4 | ||
Operating frequency h -1 | 300 | 300 | |||
Mechanical life (times) | 5*10 6 | ||||
Auxiliary contact | Rated heating current | 6A | |||
Electric life | AC 360VA DC 33W | 0.5*10 6 | |||
Coil parameters | Rated control voltage (Ue) V | 12,24,48,110,220,380 | |||
Pull-in voltage | 0.85-1.1Ue | ||||
Release voltage | 0.2-0.7Ue | ||||
Coil power VA | Pull and hold | 40/4 | |||
Power consumption | 1.2W | ||||
Pull-in time | 6-18ms | ||||
Release time | 5-23ms | ||||
Power factor | On 0.8 of, off 0.3 |
